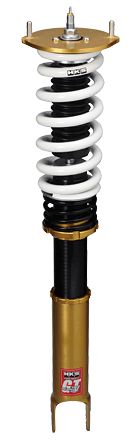

The new Max IV sporty suspension,  has an awesome sporty drive with great control and comfortable ride in the street. It's perfect for daily street drive with style and performance. The driver and the passenger can have a comfortable ride even with a low-down.

Single Tube Damper Design

Mono tube dampers allow for more accurate and stable control and adjustment of dampening. Lower ride height and centre of gravity gives a
more stable ride.

Dust Boot

Protect the shaft from the flying stones.

PNE Coating

Using this special surface coating provides 5 times better durability over standard galvanising. This prevents build-up around the threads
of the adjustment areas allowing for easier height adjustment.

"M Shaft"

With the new design of cylinder shaft since the HIPERMAX M-1, MAX IV increased the cylinder shaft size to have a firm damping even at a
little stroke range because of the optimized oil pressure characteristic. It is mainly adopted to the rear damper that can have a better driving
experience.

New Design Needle

Newly designed needle has been used to revise the very low speed and middle and high speed dampening which is key to a comfort ride.

Reduction of Unsprung Weight

In order to reduce unsprung weight, bracket, ride height adjusters and lock nuts are made from aluminium.

30 Step Damping Force Adjustment

30 levels of dampening adjustment allow fine tune adjustment for street or circuit.
